MOVEMENT FORM

1、Indexing Drives

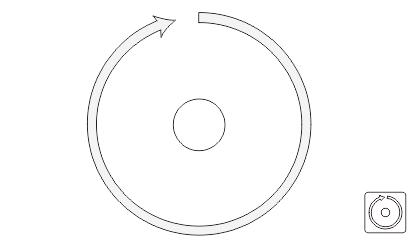

• The indexing drives operate intermittently as follows: Dwell→AEIndex→AEDwell→AEindex.
• Dwell: Output shaft stops rotating and cam follower touches the straight part of taper rib of roller gear cam.
• Index: Output shaft rotates and cam follower touches the curve part of taper rib of roller gear cam.
• Usually, the indexing drives dwells for a moment after input shaft rotates once and then output shaft indexes once.
• After output shaft rotates, the indexing drives dwell. At this moment, the operators can decide the locations of theindexed products and start to work on processing, assembling and examining.
• The rotary table on the output shaft can be used as the central driving power of the automatic rotary machinery.
• While the sprocket or pulley is installed on the output shaft, the chain/belt-driven conveyer shall drive intermittently the in-line automatic machinery.

2. Oscillating Drives

• When oscillating drives are in operation, the rotary input shaft with equal speed will make the output shaft rotate forward and backward.
• Besides rotating forward and backward, the rotation central point and the rotation angle degree can be set to some extent.
• Because there are two cam followers carrying one continuously operating taper rib, the sub-pressure generated from cam and the cam followers shall contribute to a good rotation and avoid backlash problems.
• While an oscillating arm is installed on the output shaft and a roller in the front of the oscillating drives, the device can be guided to move forward straight and used as a transporting equipment.
• If the oscillating drive is designed as an intermittent index equipment to rotate while indexing or dwelling, the stability and velocity of the machinery shall be  increased.

3.Roller Drives

• Roller drives is a kind of gear-down engine, providing stable rotation, no backlash and excellent torque.
• Because the roller gear cam and the cam follower match each other while rotating, the machinery can operate efficiently.
• In addition to as a gear-down machine, it can be also used as a device to determine the final position while indexing table.

4.Oscilate Handler

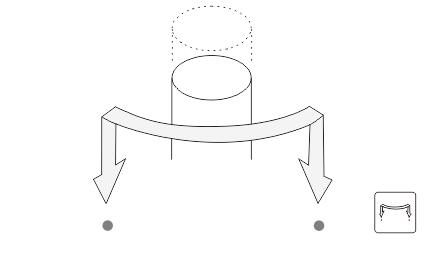

• When oscillating drives are in operation, the rotary input shaft with equal speed shall make the output shaft rotate forward and backward and lift in two dimensions.
• The output shaft can be set to stop at the central point of rotation path while oscillating. The rotary angle degree and lifting capacity can be also set.
• Oscillate handler, applying stereoscopic cams, can provide correct timing. Overlap of rotating and lifting and timing can be set.
• The oscillate handler can make a transportation from conveyor to operation table.

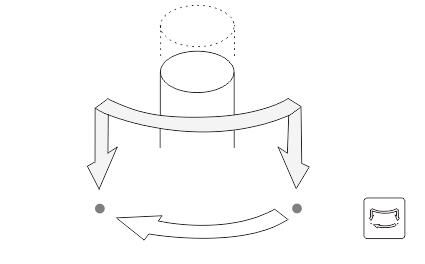

5.Oscilate Handler

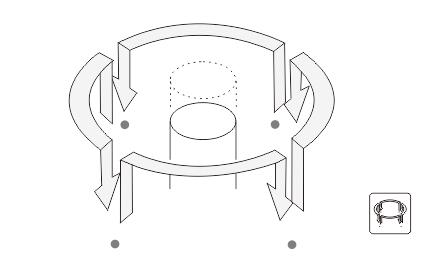

• This motion is also three-dimensional motion, compared to the last motion, it doesn't backtrack by the same route, but move back on the low position, this motion can increase the work working

6.Index Handler

• Index handler can rotate and lift in two dimension intermittently. The operation procedures are as follows: Dwell→AELift→AEIndex→AELift→AEDwell
• Output shaft can be set to stop at the central point of rotation path while indexing intermittently. The rotary angle degree and lifting capacity can be also set.
• Index handler, applying stereoscopic cams, can provide correct timing. Overlap of rotating and lifting and timing can be set.
• Index handler can be used as a conveyer that can move along with the indexing direction and make other actions while transporting.
